Welding Fabrication

Specialized Welding Applications

Welding fabrication is a vital process in manufacturing, where two or more materials, typically metals or thermoplastics, are joined together by melting their edges and adding a filler material, forming a strong bond once cooled and solidified. Welding is employed across numerous industries, including construction, automotive, energy, and manufacturing. The choice of welding technique and the associated materials depend on the application, material properties, and the desired mechanical and thermal performance of the welded structure.

Common Welding Techniques

1. Arc Welding

Description: Arc welding involves the use of an electric arc to melt and join metal pieces. The most commonly used arc welding processes include Shielded Metal Arc Welding (SMAW), Gas Metal Arc Welding (GMAW or MIG), Gas Tungsten Arc Welding (GTAW or TIG), and Flux-Cored Arc Welding (FCAW).

Applications:

• Structural Fabrication: Arc welding is extensively used in the construction of structural components, such as beams, columns, and frames in buildings, bridges, and other infrastructure.

• Pipe Welding: The process is widely used in oil, gas, and chemical industries to weld pipelines, where both strength and resistance to high-pressure conditions are critical.

• Automotive Manufacturing: In automotive production, MIG and TIG welding are used for joining car bodies, exhaust systems, and chassis components.

2. MIG Welding (Metal Inert Gas)

Description: MIG welding is a type of arc welding where a continuous wire electrode is fed through a welding gun and melted to form the weld pool. An inert gas, typically argon or a mixture of argon and carbon dioxide, shields the weld from contamination.

Applications:

• Automotive and Shipbuilding: MIG welding is commonly used for welding thin to medium-thickness metals, especially for manufacturing car bodies, motorcycle frames, and ships' hulls.

• Light Manufacturing: MIG welding is ideal for general-purpose, production-line welding, such as for making agricultural equipment, appliance manufacturing, and metal furniture.

• Fabrication of Stainless Steel and Aluminum: MIG welding is used in industries that work with stainless steel and aluminum, such as the food processing, medical device, and sectors.

3. TIG Welding (Tungsten Inert Gas)

Description: TIG welding involves a non-consumable tungsten electrode that creates an arc to melt the metal. A separate filler rod is manually fed into the weld pool if needed, and the process is shielded by an inert gas like argon.

Applications:

• Medical Devices: In the medical industry, TIG welding is employed to produce high-precision welds for surgical instruments, implants, and medical equipment.

• Artistic Metalworking: TIG welding is often used in artistic applications where clean, aesthetically pleasing welds are required for sculptures, decorative metal art, and custom jewelry.

4. Stick Welding (SMAW – Shielded Metal Arc Welding)

Description: Stick welding uses a consumable electrode coated in flux. The arc forms between the electrode and the base metal, melting both the electrode and the base metal to form a weld. It is known for its portability and ease of use.

Applications:

• Heavy Industrial and Construction: Stick welding is commonly used in heavy industries and construction, including steel fabrication, tank building, and welding in outdoor or field applications.

• Pipeline Welding: The process is used in oil, gas, and chemical industries for welding pipelines, particularly in remote locations or harsh environments.

• Repair and Maintenance: Stick welding is widely used in repair and maintenance applications, especially when welding thick materials or in environments where access to power is limited.

5. Flux-Cored Arc Welding (FCAW)

Description: Flux-cored arc welding is similar to MIG welding but uses a tubular wire filled with flux to create a more stable arc and provide additional shielding gas. It can be used with or without an external shielding gas.

Applications:

• Heavy Fabrication and Shipbuilding: FCAW is used for welding thick materials and in heavy industries like shipbuilding, steel fabrication, and offshore structures.

• Construction: FCAW is used for welding steel structures, such as in the construction of large buildings, bridges, and tanks.

• Automotive Manufacturing: In automotive production, FCAW is often employed for welding thick sheet metal, such as chassis components and frame rails.

6. Submerged Arc Welding (SAW)

Description: Submerged arc welding is an automated process where an arc is formed between a continuous electrode and the workpiece, which is submerged in a granular flux to protect the weld from contamination. It is known for producing deep weld penetration and high deposition rates.

Applications:

• Shipbuilding and Offshore Construction: SAW is used in shipbuilding and offshore drilling rig fabrication, where thick materials are joined and high production rates are required.

• Heavy Structural Fabrication: Large-scale steel structures, including bridges, tanks, and pressure vessels, are often fabricated using SAW for high-strength, reliable welds.

• Pipeline Welding: Submerged arc welding is commonly used in pipeline welding for oil and gas pipelines due to its ability to handle thick-walled pipes.

7. Laser Welding

Description: Laser welding uses a focused laser beam to melt and join materials, offering high precision and minimal heat-affected zones. It is often used in automated or highly controlled environments.

Applications:

• Electronics and Microelectronics: Laser welding is used in the electronics industry for joining delicate components such as circuit boards, connectors, and fine wires.

• Automotive Manufacturing: In automotive applications, laser welding is used to join thin sheets of metal in body panels, battery packs, and other high-precision parts.

8. Electron Beam Welding (EBW)

Description: EBW uses a focused beam of electrons to melt and join materials in a vacuum. It is known for its ability to produce high-quality, deep welds with minimal heat distortion.

Applications:

• Medical Device Manufacturing: EBW is used for welding delicate medical components, including implants and surgical instruments, where high precision and minimal thermal distortion are required.

• Nuclear and High-Temperature Applications: EBW is ideal for welding high-strength alloys and materials used in nuclear reactors and high-temperature environments.

Specialized Welding Applications by Industry

1. Oil and Gas Industry

• Pipeline Welding: Welding plays a critical role in the construction and maintenance of oil and gas pipelines. SAW, FCAW, and SMAW are commonly used to join large-diameter pipes used in transporting oil, natural gas, and other fluids.

• Offshore Structures: In offshore oil platforms and drilling rigs, welding is used to fabricate large structural elements, equipment, and piping systems that must withstand harsh environmental conditions.

• Refinery and Petrochemical Plants: Welding is used for creating pressure vessels, reactors, and piping systems in refineries, requiring high precision and the ability to handle extreme temperatures and pressures.

2. Power Generation

• Turbine Construction: Welding is used to fabricate the components of steam, gas, and wind turbines. Parts like turbine blades, casings, and shafts require precise welding techniques, often using TIG and electron beam welding.

• Boilers and Heat Exchangers: Boilers and heat exchangers used in power plants and industrial facilities are fabricated using welding to ensure safe and efficient heat transfer.

• Nuclear Power Plants: Welding is critical for creating components of nuclear reactors, where precision, strength, and resistance to corrosion are paramount.

3. Shipbuilding

• Hull Fabrication: Welding is used in shipbuilding for joining steel plates and creating the hull of ships. Submerged arc welding (SAW) is often employed for its deep penetration capabilities and high-speed welding.

• Marine Components: Welding is also used to manufacture marine components, including propellers, rudders, and engine parts, requiring high-strength joints to withstand saltwater corrosion and extreme pressure.

• Repair and Maintenance: In ship repair, welding is used for patching and replacing sections of hulls, decks, and piping systems.

4. Automotive Industry

• Body Panels and Frames: In automotive manufacturing, welding is used extensively for joining steel or aluminum body panels and frames. MIG and TIG welding are common techniques used to fabricate car bodies, chassis, and interior parts.

• Exhaust Systems and Engine Components: Welding is crucial for the assembly of exhaust systems, manifolds, and engine components in cars and trucks, ensuring they can handle heat, pressure, and vibrations.

• Battery Packs: In electric vehicle (EV) production, laser welding and spot welding are used to join components in battery packs, which require high precision and safety standards.

5. Construction and Structural Fabrication

• Steel Frame Construction: Welding is the primary method for joining steel beams, columns, and other structural components in buildings, bridges, and towers. Techniques like SMAW, MIG, and FCAW are used for various structural applications.

• Pressure Vessels and Tanks: In industries like chemical and petrochemical, welding is used to fabricate large pressure vessels, storage tanks, and piping systems, often employing SAW for its high deposition rate.

• Heavy Equipment Manufacturing: Welding is employed in the construction of heavy equipment like cranes, bulldozers, and excavators, where high-strength, durable joints are essential for performance.

6. Food and Beverage Industry

• Processing Equipment: In the food and beverage industry, welding is used to fabricate processing tanks, pipes, and other equipment. TIG welding is often used for sanitary applications where clean, smooth welds are required.

• Stainless Steel Construction: Many parts of food processing plants, such as vats, mixers, and conveyors, are made of stainless steel and welded for strength and durability.

Conclusion

Welding fabrication is an essential process across many industries, providing strong, durable, and precise joints for a wide range of applications. From heavy-duty construction to automotive, and medical devices, welding plays a central role in creating and maintaining the integrity of structures, machinery, and equipment. The variety of welding techniques—ARC, MIG, TIG, FCAW, laser, and more—ensures that the process can meet the specific demands of different materials, geometries, and industry requirements. As technology advances, new welding techniques are continually emerging, enabling greater precision, efficiency, and strength in welded products.

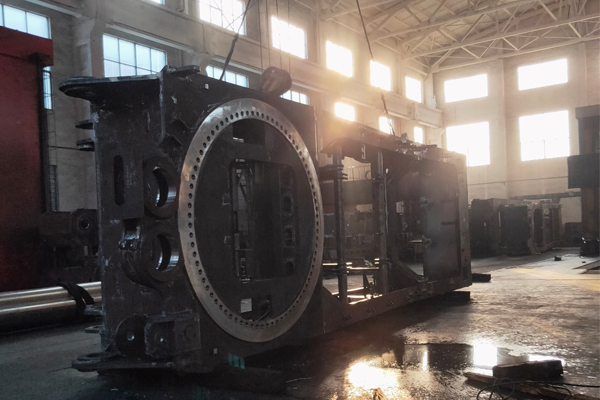

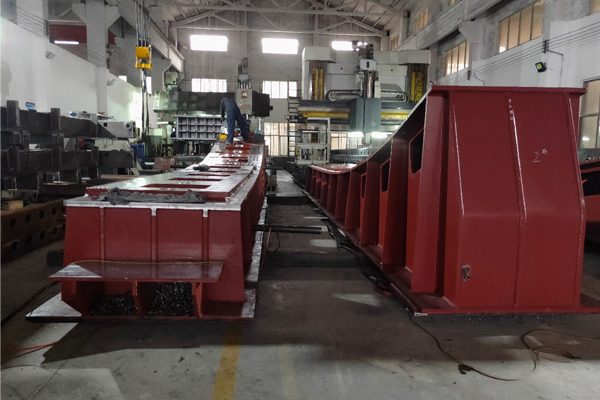

Material we can do but not limit:

Alloy steel, carbon steel, stainless steel, etc..
