Iron Sand Casting

Types of Iron Used in Sand Casting

1. Gray Iron:

Characteristics: Gray iron is the most commonly used type of iron in sand casting. It is easy to cast, has good machinability, and provides excellent wear resistance. Its name comes from the gray color of the fractured surface, which is due to its graphite content.

Applications: Used for parts that require good castability and wear resistance, such as engine blocks, machine bases, and pump housings.

2. Ductile Iron (Nodular Cast Iron):

Characteristics: Ductile iron is an alloy of iron and carbon with small amounts of alloying elements like magnesium. This type of iron is known for its high strength, ductility, and toughness, making it ideal for parts subject to shock loading.

Applications: Used in heavy-duty applications such as automotive components (e.g., suspension parts, crankshafts), gears, and mining equipment.

3. White Iron:

Characteristics: White iron is a high-carbon cast iron that is very hard and wear-resistant. However, it is brittle and not suitable for parts that require ductility.

Applications: Used for parts that need high wear resistance, such as crusher parts, grinding mills, and slurry pump parts.

4. Malleable Iron:

Characteristics: Malleable iron is produced by heat-treating white iron to improve its ductility and toughness. It is stronger and more malleable than gray iron.

Applications: Used in parts such as brackets, couplings, and agricultural machinery components.

Applications of Iron Sand Casting

Iron sand casting is used in a wide range of industries that require durable, cost-effective, and high-strength components. Below are some key applications of iron sand castings:

1. Automotive Industry

The automotive industry is one of the largest consumers of iron sand castings, as many critical parts of vehicles are made using cast iron due to its strength, wear resistance, and ability to be easily machined.

• Engine Components: Cylinder heads, engine blocks, and crankcases are typically cast from gray iron due to its good castability and ability to resist wear and heat.

• Brake Discs and Drums: Cast iron brake discs and drums are favored for their excellent heat resistance, wear resistance, and ability to absorb vibrations.

• Transmission Parts: Gearboxes, differentials, and clutch housings are often made using iron sand casting due to the strength and durability required for automotive transmission systems.

Benefits in Automotive:

• High Wear Resistance: Cast iron components are able to withstand the friction and wear encountered in automotive applications like brake systems and engine components.

• Thermal Stability: Iron castings are excellent at managing high temperatures, which is crucial for engine and exhaust system components.

• Machinability: Gray iron castings offer excellent machinability, allowing for easy post-casting processing.

2. Industrial Machinery and Equipment

Iron sand casting is widely used in the industrial machinery sector to create durable components that endure heavy stresses and mechanical forces.

• Machine Bases: Heavy-duty machine bases, frames, and beds used in CNC machines and industrial machinery are typically made from gray or ductile iron.

• Gearboxes: Cast iron is commonly used for producing gear housings, gears, and shafts for industrial machinery due to its ability to handle high stresses and wear.

• Pumps: Pump housings, impellers, and valve bodies in industrial pumps are often cast from iron alloys due to their strength and ability to withstand corrosive environments.

Benefits in Industrial Machinery:

• High Strength: Iron castings are ideal for parts that are subject to high mechanical stresses.

• Vibration Damping: Cast iron absorbs vibrations, which helps in reducing noise and extending the service life of machinery.

• Cost-Effective: Iron casting is an economical option for producing large, complex parts used in heavy machinery and industrial equipment.

3. Agricultural Equipment

Agricultural equipment manufacturers often use iron sand casting to produce durable parts that can withstand the tough conditions in farming environments.

• Tractor Components: Housings, brackets, axles, and gears used in tractors and harvesters are often cast from ductile iron for added strength and wear resistance.

• Farm Implements: Parts such as plow shares, discs, and wheel hubs are cast in iron to provide the durability needed for farming operations.

• Agricultural Machinery: Engines, gearboxes, and chassis components are commonly made from gray iron or ductile iron due to their ability to resist wear and shock loads.

Benefits in Agricultural Equipment:

• Strength and Durability: Cast iron parts withstand heavy loads and the harsh conditions often encountered in agricultural applications.

• Impact Resistance: Ductile iron provides the toughness needed to absorb shock and resist impacts during agricultural operations.

• Ease of Machining: Many agricultural parts require post-casting machining, which is easy to achieve with iron castings.

4. Mining and Heavy Equipment

Iron sand casting is frequently used in the production of parts for mining equipment and other heavy-duty machinery due to its strength, wear resistance, and ability to withstand extreme conditions.

• Crusher Parts: Crusher jaws, mantles, and liners are commonly cast in white iron or ductile iron to provide excellent wear resistance for mining and mineral processing equipment.

• Excavator Components: Track shoes, bucket teeth, spade blades, and brackets used in excavators, bulldozers, and other heavy construction equipment are made from iron castings for durability and wear resistance.

• Mining Equipment: Drill bits, conveyor parts, and pumps are often cast in ductile iron to handle the abrasive conditions in mining and mineral extraction.

Benefits in Mining and Heavy Equipment:

• Wear Resistance: White iron and ductile iron provide excellent wear resistance, which is essential for parts exposed to abrasive materials in mining.

• Strength: Iron castings can withstand high loads and mechanical stresses in heavy-duty equipment.

• Corrosion Resistance: Depending on the alloy used, iron castings can offer some resistance to corrosion, which is beneficial in harsh environments.

5. Power Generation

The power generation industry uses iron sand casting to produce components for power plants, including both fossil-fuel-based and renewable energy systems.

• Turbine Parts: Turbine casings, blades, and rotors are often made from iron castings due to their ability to withstand high temperatures and mechanical stresses.

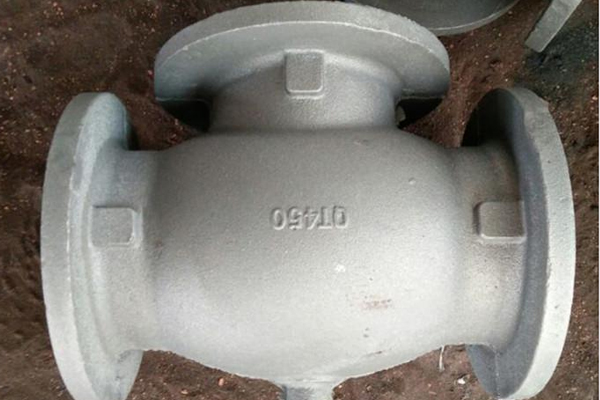

• Boiler Components: Boiler parts such as valve bodies, piping, and flanges are cast from iron to handle the high-pressure steam and thermal stresses inside power plants.

• Energy Generation Equipment: Components such as gearboxes, pump housings, and generators are commonly cast from iron for power generation systems.

Benefits in Power Generation:

• Heat Resistance: Cast iron is ideal for parts that are exposed to high temperatures, such as turbine components and boiler parts.

• Strength and Durability: The high strength of iron castings is crucial for components that must endure high pressures and mechanical stresses in power plants.

• Cost-Effective: The ability to cast complex parts at a relatively low cost makes iron sand casting an attractive option for power generation equipment.

6. Construction and Infrastructure

Iron sand casting is used for producing a variety of parts in the construction and infrastructure sectors where strength, durability, and cost-effectiveness are essential.

• Construction Machinery Parts: Cranes, excavators, and road rollers often use iron castings for their frames, housings, and other critical components.

• Infrastructure Components: Bridge bearings, manhole covers, and railroad components are commonly cast from iron due to their strength and resistance to wear and corrosion.

Benefits in Construction and Infrastructure:

• High Strength: Iron castings provide the necessary strength for structural components and heavy-duty machinery.

• Durability: Iron castings resist wear and corrosion, ensuring long service life even in tough environments.

• Cost-Effective: The ability to mass-produce complex parts at a low cost makes iron sand casting an economical solution for construction and infrastructure.

Conclusion

Iron sand casting is an essential and versatile process used across a wide range of industries for producing high-strength, durable, and cost-effective components. Whether in automotive, industrial machinery, mining, power generation, or construction, iron sand casting offers excellent performance, especially when parts require wear resistance, high strength, and durability. With the ability to produce complex geometries and intricate designs, iron sand casting remains a key manufacturing process for many critical components.
