Carbon Steel Fabrication

Detailed Applications of Carbon Steel Welding Fabrication

Carbon steel is one of the most commonly used materials in welding fabrication due to its availability, versatility, and cost-effectiveness. It is a type of steel that contains a higher percentage of carbon than other alloy steels, and its properties are largely determined by the amount of carbon in the steel. Carbon steel welding fabrication is used extensively across a wide range of industries, from construction to manufacturing to heavy equipment.

Key Types of Carbon Steel

• Low Carbon Steel (Mild Steel): Contains up to 0.30% carbon. It is easy to weld and is the most commonly used steel in fabrication.

• Medium Carbon Steel: Contains 0.30% to 0.60% carbon. It offers better strength than low carbon steel but may require more control during welding.

• High Carbon Steel: Contains 0.60% to 1.0% carbon. It is harder and stronger but more difficult to weld due to its propensity to crack.

Key Industrial Applications:

1. Construction and Infrastructure

• Structural Beams, Columns, and Frames: Carbon steel is widely used in the construction of buildings, bridges, and other infrastructure. Structural carbon steels like ASTM A36 are often welded for making beams, columns, and structural frames. These materials provide a good balance of strength, ductility, and ease of fabrication.

• Reinforced Concrete Frames: Carbon steel is used to weld reinforcement bars and mesh in concrete, contributing tensile strength and supporting large structures, particularly in the construction of commercial, industrial, and residential buildings.

• Temporary and Permanent Support Structures: In construction, carbon steel is also used for welding scaffolding, formwork, and support structures during construction projects.

2. Piping Systems and Plumbing

• Pipeline Welding: Carbon steel is widely used in welding pipelines for the oil, gas, water, and chemical industries. Steel grades like ASTM A106 (for high-temperature service) and ASTM A53 (for general structural and piping applications) are commonly welded. These pipelines must withstand internal pressures and external environmental factors, making carbon steel a suitable option.

• Plumbing: Carbon steel is used in residential, commercial, and industrial plumbing systems due to its cost-effectiveness and availability. It is welded to create piping systems for water, gas, and waste management.

• Gas Distribution Systems: Carbon steel welded pipes are frequently used in gas distribution systems due to their strength and ability to withstand pressure.

3. Automotive and Transportation

• Vehicle Frames and Chassis: Low-carbon steel is frequently used in automotive fabrication for making vehicle frames, body panels, and chassis. Steel grades such as SAE 1010 and SAE 1020 are common in these applications, as they are easy to weld and have good formability.

• Exhaust Systems: Carbon steel is also used for welding parts of exhaust systems, such as manifolds, pipes, and silencers, particularly in applications where moderate corrosion resistance is sufficient.

• Truck Bodies and Trailers: Carbon steel is used to fabricate the structure of truck bodies and trailers, where strength and durability are required without a significant weight penalty.

4. Energy and Power Generation

• Boilers and Heat Exchangers: Carbon steel is used in the construction of boilers and heat exchangers due to its ability to withstand high pressures and temperatures. Grades like ASTM A106 and ASTM A335 are commonly welded for steam generation equipment and heat transfer systems.

• Pressure Vessels: Carbon steel is often used in welding pressure vessels for industries such as petrochemical, chemical, and power generation. ASTM A516 and ASTM A537 are commonly used grades for pressure vessels, as they offer excellent weldability and strength under pressure.

• Renewable Energy Components: Carbon steel is also used in renewable energy applications such as wind turbine towers and solar farm infrastructure due to its strength and ease of fabrication.

5. Manufacturing and Industrial Equipment

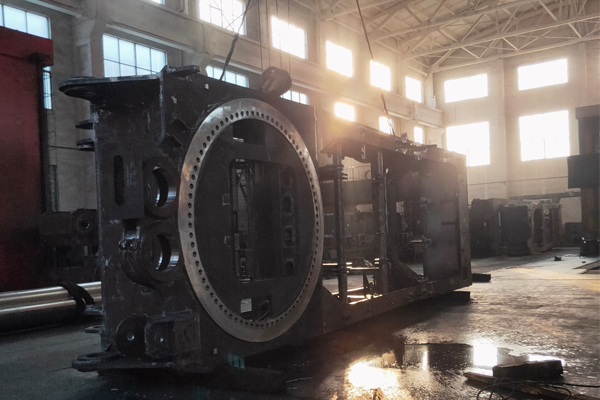

• Heavy Machinery and Equipment Frames: Carbon steel is widely used in the fabrication of industrial equipment, such as the frames of heavy machinery, crushers, and material handling equipment. High-strength carbon steels like SAE 1045 are often used for these components due to their strength and durability.

• Tooling and Dies: Carbon steel is commonly welded for the manufacture of dies, molds, and tooling for mass production, particularly in industries such as automotive, electronics, and appliances. Medium-carbon steel grades like SAE 1045 and SAE 1050 are preferred for their balance of hardness, strength, and toughness.

• Material Handling Equipment: Carbon steel is welded to create various material handling systems such as conveyor belts, hoists, and cranes, where toughness and wear resistance are crucial.

6. Marine and Offshore Structures

• Shipbuilding: Carbon steel is frequently used in the shipbuilding industry to fabricate hulls, decks, and other structural components of vessels. Grades such as ASTM A36 and ASTM A131 are widely used in shipbuilding for their strength, ease of welding, and cost-effectiveness.

• Offshore Platforms: In offshore oil and gas exploration, carbon steel is used for welding structural components of drilling rigs, platforms, and support structures, as well as for piping and safety equipment. Carbon steel’s ability to withstand harsh marine environments makes it suitable for many offshore applications.

• Docks and Harbor Equipment: Carbon steel is also used in the fabrication of docks, piers, and harbor equipment, where structural integrity and resistance to harsh conditions are essential.

7. Mining and Heavy Duty Applications

• Mining Equipment: Carbon steel is used for the fabrication of heavy-duty mining equipment, including excavators, crushers, and conveyor systems. These machines need strong, durable components that can withstand high stresses and abrasive conditions.

• Heavy Load Carriers: Carbon steel is used in the manufacture of heavy-duty vehicles and machines that transport large loads, including mining trucks, bulldozers, and other earth-moving machinery.

8. Food and Beverage Industry

• Storage Tanks and Silos: Carbon steel is commonly used in the fabrication of large storage tanks and silos for the food, beverage, and chemical industries. These containers must be able to withstand pressure and hold large volumes of materials.

• Processing Equipment: Equipment such as mixers, conveyors, and pumps used in food and beverage manufacturing is often made of welded carbon steel, providing strength and the ability to handle high volumes of product.

9. General Fabrication and Structural Works

• Custom Fabrication: Carbon steel is used for custom fabrication of non-standard parts, components, and structures in a variety of industries. Its ease of welding, low cost, and availability make it ideal for creating bespoke parts.

• Metal Fencing and Gates: Carbon steel is used in the fabrication of fences, gates, and security barriers due to its strength and ability to be welded into various forms and shapes.

Welding Techniques for Carbon Steel Fabrication

The welding of carbon steel is a well-established process, and many welding methods are used depending on the specific application and requirements of the project. Here are some common welding techniques:

• Shielded Metal Arc Welding (SMAW / Stick Welding): A versatile and widely used welding method for carbon steel, particularly for construction, heavy machinery, and pipe welding. It is suitable for both indoor and outdoor use and is ideal for thicker sections.

• Gas Metal Arc Welding (GMAW / MIG Welding): MIG welding is commonly used for high-speed, high-volume welding of carbon steel. It is widely used in industries like automotive, construction, and fabrication of general components due to its efficiency and clean welds.

• Gas Tungsten Arc Welding (GTAW / TIG Welding): TIG welding is often used for precise and high-quality welds in carbon steel fabrication, particularly in applications where high finish and weld strength are required, such as in automotive, and piping industries.

• Flux-Cored Arc Welding (FCAW): FCAW is used for welding thicker sections of carbon steel, especially in structural applications such as in construction and shipbuilding. It offers higher deposition rates and is suitable for high-speed welding of carbon steel.

• Submerged Arc Welding (SAW): This technique is used for welding large, thick sections of carbon steel, particularly in the fabrication of pressure vessels, large structural components, and pipelines.

• Oxy-Acetylene Welding (OAW): While not as common as other methods, oxy-acetylene welding is sometimes used in carbon steel welding, especially for lighter fabrication tasks, cutting, and repairs in situations where portability is needed.

Challenges in Carbon Steel Welding Fabrication

• Distortion and Warping: Carbon steel is prone to warping and distortion when subjected to excessive heat during welding. Proper heat management and pre/post-weld treatments are necessary to reduce this.

• Hydrogen-Induced Cracking: High-carbon steels and thick sections of low-carbon steel are susceptible to hydrogen cracking, requiring the use of proper welding techniques and filler materials.

• Heat-Affected Zone (HAZ) Hardening: When welding carbon steel, the heat-affected zone can become too hard and brittle, especially in high-carbon steels, making it susceptible to cracking. Preheating or post-weld heat treatment can help mitigate this issue.

• Corrosion Resistance: Although carbon steel is not as corrosion-resistant as stainless steel, in many applications, it is treated with coatings, galvanization, or paint to improve its corrosion resistance, especially in outdoor or marine environments.

Material we can do but not limited:

AISI 1010, AISI 1018, AISI 1020, AISI 1026 etc..
