Closed-die Forging(Impression-die)

Key Features of Closed-Die Forging Products:

1. High Precision:
The closed-die forging process allows for tight tolerances and intricate geometries, resulting in parts that require minimal post-processing.

2. Superior Material Properties:
The forging process aligns the grain structure of the metal, enhancing its strength, toughness, and fatigue resistance. This leads to products with high durability, which can withstand extreme loads and stresses.

3. Uniformity:
The process ensures uniform density, eliminating voids or internal defects that can compromise the strength and integrity of the product.

4. Enhanced Fatigue Resistance:
The metal’s grain structure is compressed during forging, improving its ability to resist cyclic loading and fatigue, which is crucial for high-performance applications.

5. Tailored Shapes:
Parts can be forged into complex shapes, which reduces the need for additional machining and lowers manufacturing costs.

Common Materials Used in Closed-Die Forging:

• Carbon Steel: Often used for general-purpose, high-strength parts.

• Alloy Steel: For parts that require enhanced properties like toughness, hardness, or resistance to wear.

• Stainless Steel: For corrosion-resistant products needed in harsh environments.

• Titanium Alloys: Used in aerospace, automotive, and other applications requiring high strength and low weight.

• Nickel Alloys: Often used in high-temperature or chemical environments, like gas turbines and aerospace components.

Types of Closed-Die Forging Products:

1. Automotive Parts:

• Crankshafts, camshafts, connecting rods, and gears, which require high strength and precision.

• Suspension components, steering components, and other structural parts.

2. Aerospace Components:

• Engine parts (e.g., turbine blades, compressor rotors), structural components, and landing gear.

• Components that need to withstand high temperatures, stresses, and corrosion.

3. Heavy Machinery Parts:

• Gear wheels, shafts, and housings used in mining, construction, and agricultural machinery.

• Bearings, axles, and other load-bearing components.

4. Industrial Equipment:

• Hydraulic cylinders, pumps, valve bodies, and other critical components that require high strength and precision.

5. Oil & Gas:

• Components like valves, flanges, drill heads, and pressure vessels that are critical in harsh environments.

• Equipment used in upstream, midstream, and downstream operations, including offshore platforms and pipelines.

6. Military and Defense Parts:

• Armor-piercing shells, gun components, and other high-strength, critical military parts.

• Components for military vehicles, aircraft, and naval ships.

7. Wind and Hydropower:

• Forged turbine shafts, couplings, and other high-strength components in wind and hydroelectric power generation systems.

Advantages of Closed-Die Forging:

· Strength and Durability:
Closed-die forging imparts superior strength and fatigue resistance, making the parts ideal for heavy-duty, high-stress applications.

· Material Efficiency:
Minimal material waste due to the near-net-shape forming process, which reduces the need for additional machining or scrap material.

· Improved Safety:
The robust properties of forged products make them safer in critical applications, such as aerospace and automotive, where part failure is not an option.

· Cost-Effective for High-Volume Production:
After the initial cost of creating the dies, closed-die forging becomes more cost-effective for producing large volumes of parts with high uniformity and low scrap rates.

Process Overview of Closed-Die Forging:

1. Heating:
The raw material (usually a billet) is heated to a temperature where it becomes malleable, but not melted, allowing it to flow easily into the die cavities.

2. Shaping:

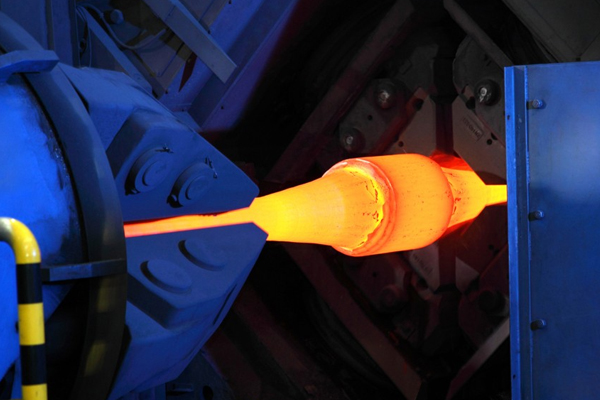

The heated billet is placed between two dies (which are designed in the shape of the final part) and compressed under high pressure using a mechanical press, hammer, or hydraulic press. This process shapes the material into the desired form.

3. Trimming:
After forging, excess material (flash) around the edges is removed, either through trimming or machining, to achieve the final dimensions.

4. Finishing:
Depending on the application, the forged part may undergo additional processes such as heat treatment (to enhance hardness or strength), machining (for fine tolerances), or surface treatments (for corrosion resistance).

Summary:

Closed-die forging products are high-quality, high-performance components used in a wide range of industries, including automotive, aerospace, energy, and heavy machinery. The process produces parts with superior mechanical properties, minimal defects, and high precision, making them ideal for critical applications where strength, reliability, and safety are essential.
