  • CNC Boring

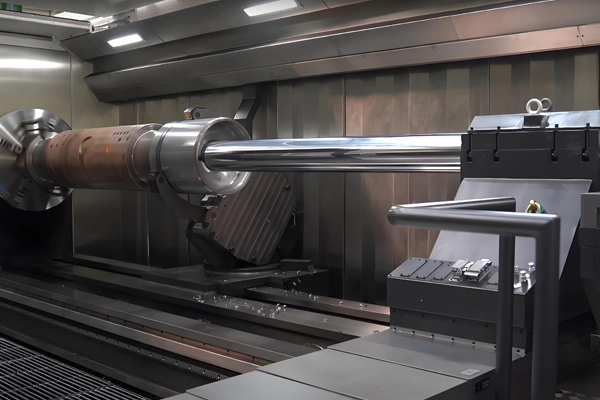

CNC Boring

CNC boring machining services are essential for enlarging and finishing pre-existing holes in castings and forgings with high precision. This process is widely applied in industries requiring tight tolerances and exact geometries for critical components.


Applications of CNC Boring for Castings and Forgings

1. Hole Enlargement:

  • Enlarges pre-cast or pre-forged holes to exact diameters.

2. Precision Alignment:

  • Ensures concentricity and alignment of bores for assemblies like engines, pumps, and turbines.

3. Surface Finishing:

  • Achieves smooth bore surfaces for proper sealing and reduced friction.

4. Counterboring:

  • Creates flat-bottomed holes for fasteners or alignment features.

5. Tapered Boring:

  • Produces tapered bores for components like shafts or couplings.

6. Deep Hole Boring:

  • Used for long cylindrical bores with precise dimensions and alignment.

7. Industrial Components:

  • Common applications include cylinders, valve bodies, gearboxes, and large flanges.



Machines Used for CNC Boring

1. Horizontal Boring Mills (HBM):

  • Versatile machines suitable for large and heavy castings/forgings.

  • Equipped with rotary tables for multi-sided machining.

2. Vertical Boring Mills (VBM):

  • Ideal for large cylindrical components and heavy-duty operations.

3. CNC Boring Machines with Adjustable Tools:

  • Allow for precise adjustments to diameter and depth.

4. Multi-Axis CNC Machines:

  • Capable of simultaneous boring and milling operations for complex parts.

5. Portable Boring Machines:

  • Used for on-site boring of oversized components.



Dimensional Inspection Measures

1. Precision Bore Gauges:

  • Measures internal diameters with high accuracy.

2. Coordinate Measuring Machines (CMM):

  • Verifies dimensions, alignment, and concentricity of bores.

3. Dial Bore Indicators:

  • Checks taper, roundness, and diameter variations.

4. Laser Measurement Systems:

  • Captures high-accuracy data for bore geometry and surface profiles.

5. Ultrasonic Thickness Gauges:

  • Measures wall thickness around bored holes.

6. Surface Finish Testers:

  • Ensures bore smoothness meets specifications (e.g., Ra values).



Inspection Reports

1. First Article Inspection (FAI):

  • Verifies the initial bore dimensions, surface quality, and alignment.

2. Geometric Dimensioning and Tolerancing (GD&T) Reports:

  • Confirms bore position, concentricity, and roundness.

3. Runout and Alignment Reports:

  • Certifies bore straightness and alignment with mating components.

4. Surface Finish Reports:

  • Documents bore roughness and polish levels.

5. Material Certification Reports (MTR):

  • Ensures the casting or forging material properties meet project specifications.



Quality Control Measures

1. Pre-Machining Inspection:

  • Check raw materials for defects like voids, inclusions, or misaligned pre-cast holes.

2. Tool Monitoring and Calibration:

  • Ensures boring tools remain sharp and accurately calibrated.

3. In-Process Monitoring:

  • Uses sensors and feedback systems to maintain consistency in cutting speeds and feeds.

4. Post-Machining Inspection:

  • Comprehensive dimensional and surface checks for all critical bores.

5. Non-Destructive Testing (NDT):

  • Includes ultrasonic and dye penetrant testing to detect hidden flaws.

6. Compliance with Standards:

  • Adherence to ISO 9001 and other industry-specific quality standards.

7. Traceability:

  • Logs every part’s dimensional data, material properties, and process history for accountability.



Advantages of CNC Boring for Castings and Forgings

1. High Precision: Enables tight tolerances critical for high-performance components.

2. Consistency: Achieves uniform bore dimensions across multiple parts.

3. Versatility: Handles a wide range of part sizes and materials.

4. Cost Efficiency: Minimizes material waste and rework due to precision machining.

5. Scalability: Suitable for both low and high-volume production.
